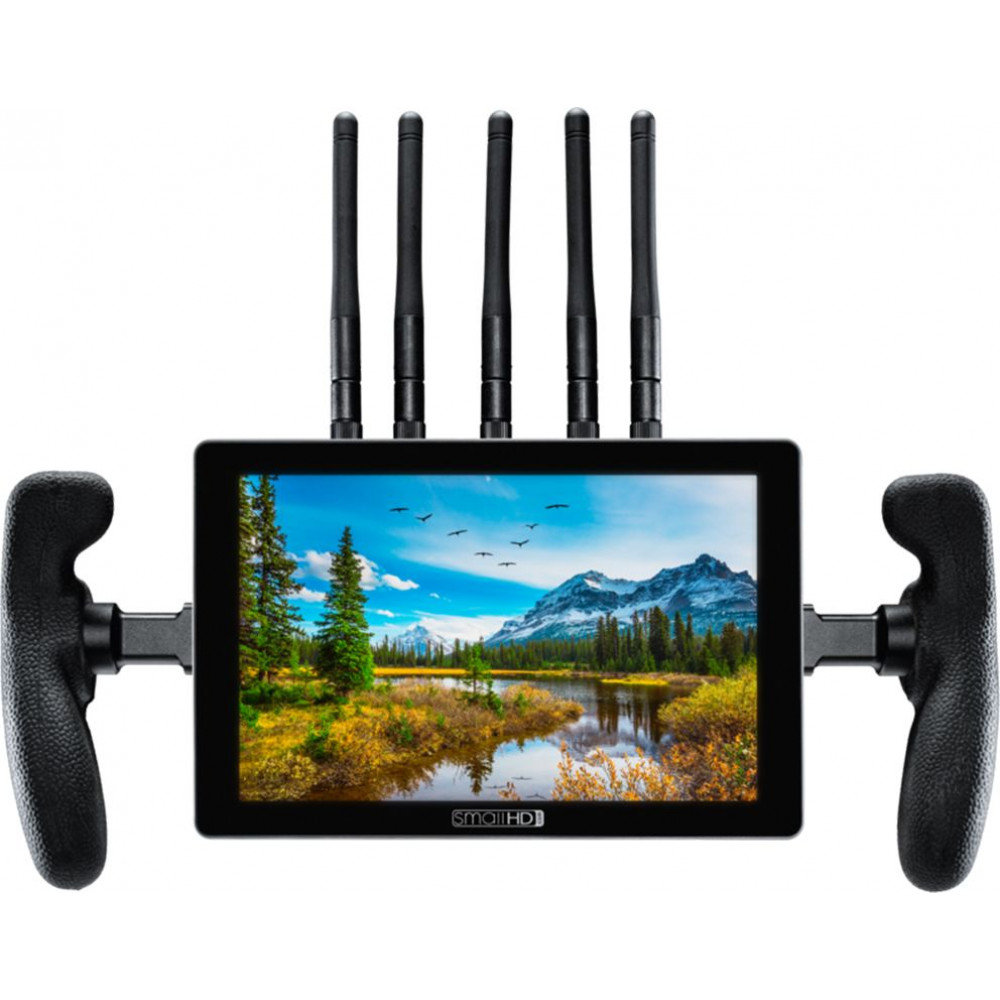

SmallHD 702 Touch Bolt 4K RX (V-Mount)

SmallHD 702 Touch Bolt 4K RX (V-Mount)

This monitor/receiver combination is the perfect pairing for meticulous eyes. RX Module easily attaches to the back of 702 Touch. Receive real-time 4K HDR wireless video directly to a 1500nit display with 100% Rec. 709 colour gamut. Gain the added benefits of PageOS 4, SmallHD’s powerful internal software toolset; 1:1 Pixel zoom allows operators to utilise added resolution to punch-in and achieve tack-sharp critical focus. Includes Monitor Handles for handheld conversion and a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

Versatile 7” Monitor

702 Touch is a workhorse 7” on-camera monitor for cinematographers, offering colour accuracy, daylight visibility, cinema camera control, as well as Teradek RT and Bolt integration.

Zero-Delay 4K Wireless Video

Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

True HDR

Supports Rec 2020 HDR in 10-bit 4:2:2 colour gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate colour reproduction.

Improved Wireless Performance

Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

RX Universal Cross-Compatibility between all Bolt 4K Devices

Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Small HD PageOS 4 Software Toolset

User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false colour, colour Pipe log conversion, etc. Monitor camera metadata, timecode, and start/stop flags.

Bolt App for Android and Apple iOS

Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyser and Wireless Health analysis tools.

Product Highlights

  • Bolt 4K RX Monitor Module
  • Video: Up to 4Kp30 / 1080p60
  • Range: 750 ft.
  • Inputs: N/A
  • Outputs: HDMI 2.0
  • Multicast: N/A
  • Compatibility: All Bolt 4K Series TX Devices

SmallHD 702 Touch

  • Display: 7-inch, 1920X1200
  • Brightness: 1500 nits
  • HDMI: 1x HDMI In, 1x HDMI Out
  • SDI: 1x 3G SDI In, 1x 3G SDI In/Out
  • Audio: ⅛” Headphone Jack
  • Power: Barrel Power Input (10V-34V, 2A DC)

Write a review

Please login or register to review
  • Brand: SmallHD
  • Product Code: 33.1.MON-702-TOUCH-BOLT4KVM
  • Availability: 1
  • $180.00
  • Ex Tax: $163.64

Product Features:

Integrated Teradek 4K wireless module

DCI-P3 Colour gamut

V-Mount battery system

1500 Nits brightness

1920 x 1200 Touchscreen


Available Locations:

Sydney - Melbourne

Tags: SmallHD, 702 Touch, Bolt 4K, RX, V-Mount
